3.05 Net Forces Worksheet Draw a red arrow to show the direction of the net force on the block. (Menu bar at top > Insert > Shapes) Also calculate the net force and state the direction when asked. If there is no net force, type an X on the block and state "does not move" if asked for the direction. 1. 2. 3. Go On To Page 2 Draw the net force arrow on the diagram. We can then use Pythagorean theorem to add the 15 N [left] to the 15 N [up] which gives a net force of 21.2 N [left 45° up]. Practice Questions: Free-body diagrams for four situations are shown below. For each situation, determine the net force acting upon the object. Free-body diagrams for four situations are shown below.

Free Body Diagrams Worksheet Name:_____ Physics. Free-body diagrams for four situations are shown below. For each situation, determine the net force acting upon the object. Free-body diagrams for four situations are shown below. The net force is known for each situation.

Net force diagram worksheet

Net force balanced and unbalanced forces worksheet answers. To find the net force on an object. When the net force on an object is zero we say that the two forces are. Predict the motion of an object with zero net force. Present you bright day. Always subtract the amounts of the forces 4. Science 8 balanced unbalanced forces worksheet name. Worksheets are Calculating net forces Work 1 body or force diagrams Name period date newtons laws of motion Newtons second law of motion problems work Speed velocity and acceleration calculations work Work 4 finding the net force Forces and body diagrams Fma work. The net force is the vector sum of all the forces that act upon an object. 27. $3.00. Zip. A 4-page worksheet that teaches and reinforces the skill of determining the net force on an object and analyzing if the forces are balanced or unbalanced and if the object will ultimately accelerate or not accelerate by analyzing 10 free body or force diagrams. Pages 1-2 Contents: - Multiple fo.

Net force diagram worksheet. The net force or the unbalanced force is the vector sum of all the forces which act upon an object. That is to say, the net force is the sum of all the forces, taking into account the fact that a force is ... Free-Body Diagrams Worksheet Author: Laura Created Date: Net Force Particle Model Worksheet 1: Force Diagrams and Net Force. 1. An elevator is moving up at a constant velocity of 2.5 m/s, as illustrated in the diagram below: The passenger has a mass of 85 kg. a. Construct a force diagram for the passenger. b. Calculate the force the floor exerts on the passenger. Talking about Force Diagrams Worksheets with Answers, we already collected various variation of images to inform you more. 2 drawing force diagrams worksheet, free body diagram worksheet answers and free-body diagrams worksheet with answers are three main things we want to present to you based on the gallery title. Name _____ Date _____ Net Force Worksheet What causes objects to move? For each problem, complete the questions using your Forces reading and vocabulary chart in your science notebook. 1. For each of diagram, determine the net force acting on the object. Then, write whether or not there will be a change in motion.

forces!became!unbalanced.! *Draw a diagram for each scenario and solve* Title: Net Force worksheet Author: Andrea Haworth Created Date: 12/1/2015 2:20:52 AM ... Worksheet 4 then extends the problems seen in worksheet 3 to now include the resulting friction equations. Draw a force diagram for the system of car and riders. Alto Saxophone Sheet Music Lullaby By Johannes Brahms Free Alto Saxophone Sheet Music Notes Sheet Music Saxophone Sheet Music Alto Saxophone Sheet Music Net Force Particle Model […] The net force or the unbalanced force is the vector sum of all the forces which act upon an object. That is to say, the net force is the sum of all the forces, taking into account the fact that a force is ... Free-Body Diagrams Worksheet Author: Laura Created Date: Balanced forces acting on an object in opposite directions and equal in strength as shown in the arrows below do not cause a change in the speed of a moving object. These worksheets emphasize the relationship between unbalanced forces and. To find the net force on an object. Balanced Vs Unbalanced Forces Worksheet Pdf.

This quiz and worksheet will gauge your knowledge of net force and how to apply it. Topics you will need to comprehend in order to pass the quiz include equilibrium and free-body diagrams. Quiz ... Worksheet #1 Free Body or Force diagrams… Drawing Free-Body Diagrams . Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation. A free -body diagram is a special example of the vector diagrams; these diagrams will be used throughout your study of physics. Displaying all worksheets related to - Particle Diagrams. Worksheets are Particle diagram work answers, Net force particle model work 4 answers, Notes, Particle model work 4 answers, Spacetime diagrams and einsteins theory for dummies, 797 pharmaceutical compoundingste rile preparations, Newtons laws of motion equations of motion equations, Particle model work 2 interactions. Worksheet #1 Free Body or Force diagrams Drawing Free-Body Diagrams Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation, A free-body diagram is a special example of the vector

Lesson Worksheet Free Body Diagrams Nagwa

27. $3.00. Zip. A 4-page worksheet that teaches and reinforces the skill of determining the net force on an object and analyzing if the forces are balanced or unbalanced and if the object will ultimately accelerate or not accelerate by analyzing 10 free body or force diagrams. Pages 1-2 Contents: - Multiple fo.

Unit 3 Newton S Laws Lesson 1 Newton S 1st And 2nd Law Of Motion Ppt Video Online Download

Net force: Change in motion: e. Net force: Change in motion: f. Net force: Change in motion: g. Net force: Change in motion: Name:_____Per:_____ Exit Slip: Below is a diagram of a tug-a0war. Circle the correct word to complete the sentences that follow. a. The forces shown are PUSHING/ PULLING forces. b. The forces shown are acting in the SAME ...

Worksheet Drawing Free Body Or Force Diagrams By Science With Mr Enns

Net force Balanced forces Unbalanced forces 2. For each of diagram, determine the net force acting on the object. Follow the format for showing your work shown in (a). Then, write whether or not there will be a change in motion. If yes, write the direction the object will move in. a. Net force: 4 N – 2 N = 2 N to the left.

We can then use Pythagorean theorem to add the 15 N [left] to the 15 N [up] which gives a net force of 21.2 N [left 45° up]. Practice Questions: Free-body diagrams for four situations are shown below. For each situation, determine the net force acting upon the object. Free-body diagrams for four situations are shown below.

Solved Resultant Forces Adding Vectors Worksheet Free Body Chegg Com

View Net force worksheet.pdf from SCIENCE SI6067 at Montclair High, Montclair. Net Force and force diagrams Worksheet Name _ PER: _ Find the net force acting on each of the objects below.

Practice Worksheet Net Force And Acceleration Fill And Sign Printable Template Online Us Legal Forms

A Net Force Causes an Acceleration. As mentioned earlier, a net force (i.e., an unbalanced force) causes an acceleration.In a previous unit, several means of representing accelerated motion (position-time and velocity-time graphs, ticker tape diagrams, velocity-time data, etc.) were discussed.

Drawing Force Diagrams And Finding The Resultant Net Force Youtube

Net Force Particle Model Worksheet 4: Newton's 2nd Law and Component Forces. 1. A rollercoaster car, 300 kg with passengers, accelerates down a 65° hill. We will assume that friction is small enough that it can be ignored. a. Draw a force diagram for the system of car and riders. b. Determine the value of the component of the gravitational ...

Free Body Diagrams For Box A And Box B The Forces Are Not Drawn To Download Scientific Diagram

Showing top 8 worksheets in the category forces 1 answer key. When the forces acting on an object are the net force is zero. Four types of friction. Consider the forces acting on the block. A topic that is part of a course is not necessarily the primary focus of the course. For example in using the worksheets with the childhoo.

Mayfieldschools Org

Oct 23, 2015 - Net Force, Balance Force(s), Unbalance Force(s) and Force Diagrams Activities. Students will calculate the net force using force diagrams and identify direction and balance and unbalance force. Instructional Strategies: Review Worksheet, Reinforcement, Quiz, Bellringer/Starter, Exit Slip Closure A...

Net Force Diagrams Worksheets Teaching Resources Tpt

A worksheet for pupils to practice drawing force diagrams, for objects with different motion. Creative Commons "Sharealike" Reviews. 3.9. Something went wrong, please try again later. keerthidevapriya. a year ago. report. 4. Empty reply does not make any sense for the end user. Submit reply ...

Mrlawsonscience Weebly Com

Net Force = 5N East **FORCE is a VECTOR QUANTITY ... Diagram the forces acting on the book. In this diagram, there are normal and gravitational forces on the book. Problem 2 An egg is free-falling from a nest in a tree. Neglect air resistance. Draw a free-body diagram showing the

Net Of Force Worksheet

Practice Worksheet: Net Force and Acceleration Name Date Block For each of the following problems, give the net force on the block, and the acceleration, including units. 12 N 7 kg Net Force 40 kg Net 200N I BON -t- 201M 26 N ... Hint: Draw a diagram showing the cart, and the two forces acting on it. 60 50

Solved Unit 4 Worksheet 2 1 A Pushes B At A Constant Chegg Com

Net Force Balanced Unbalanced Worksheet Youtube

Worksheets are Calculating net forces Work 1 body or force diagrams Name period date newtons laws of motion Newtons second law of motion problems work Speed velocity and acceleration calculations work Work 4 finding the net force Forces and body diagrams Fma work. The net force is the vector sum of all the forces that act upon an object.

Figure 4 Various Free Body Diagrams

02 03 Net Force Worksheet 2 Pdf

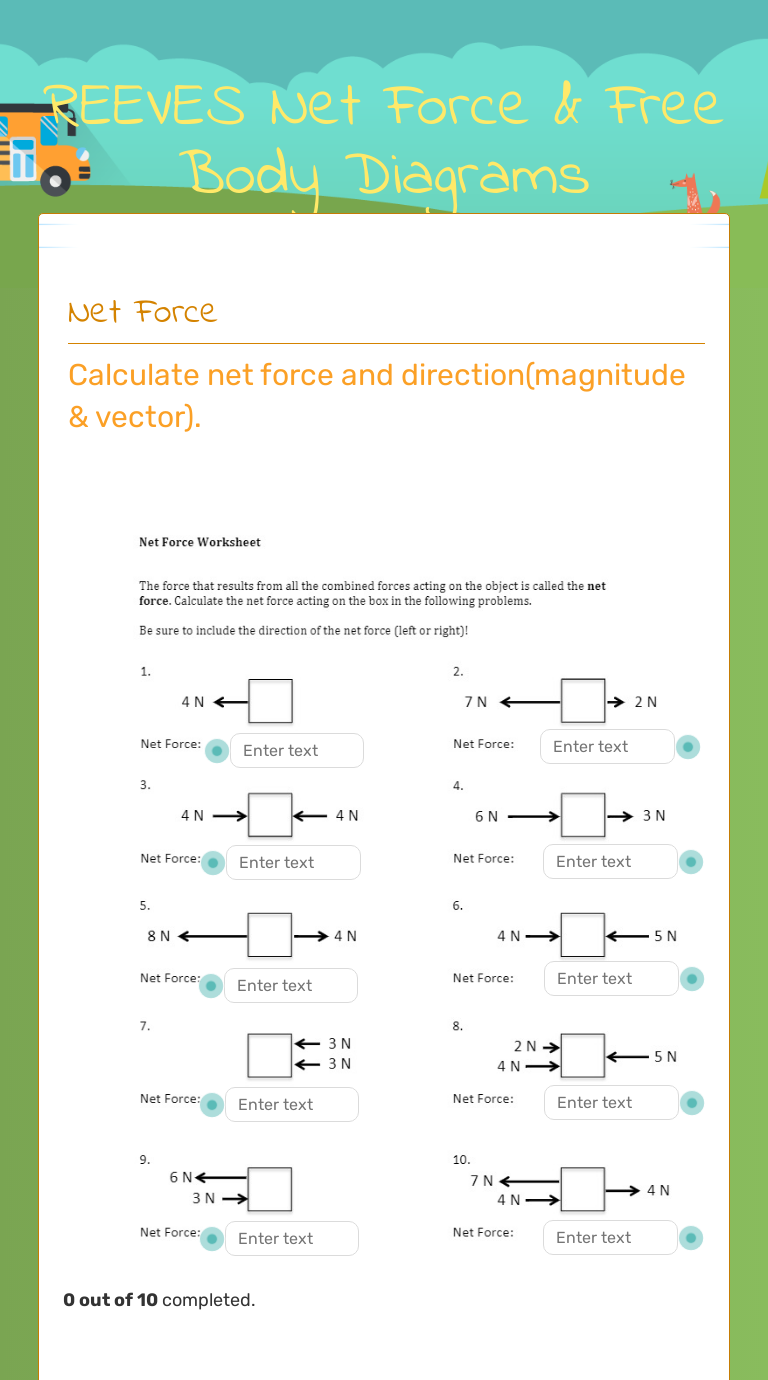

Reeves Net Force Free Body Diagrams Interactive Worksheet By Marin Becker Wizer Me

Calculate The Net Force Of The Following Forces Practice Problems 2 Pdfcalculating Net Force Worksheet Name

What Is Force Net Know It Info

Free Body Diagram Net Force Practice Worksheet Body Diagram Practices Worksheets Worksheets

Free Body Diagrams Edexcel Gcse Physics Revision Notes

A Draw A Force Diagram For A 900 Kg Car That Exerts 5000 N Of Traction Force On Course Hero

Net Force Worksheet Crjh 8th Grade Science Licensed Force Net Force Worksheet Balanced Forces Unbalanced Forces 2 For Each Of Diagram 8 N 10 N D 10 N Net Force Change

Determining The Net Force

Jshuhyta Weebly Com

Quiz Worksheet Fbd Balanced Force Calculations Study Com

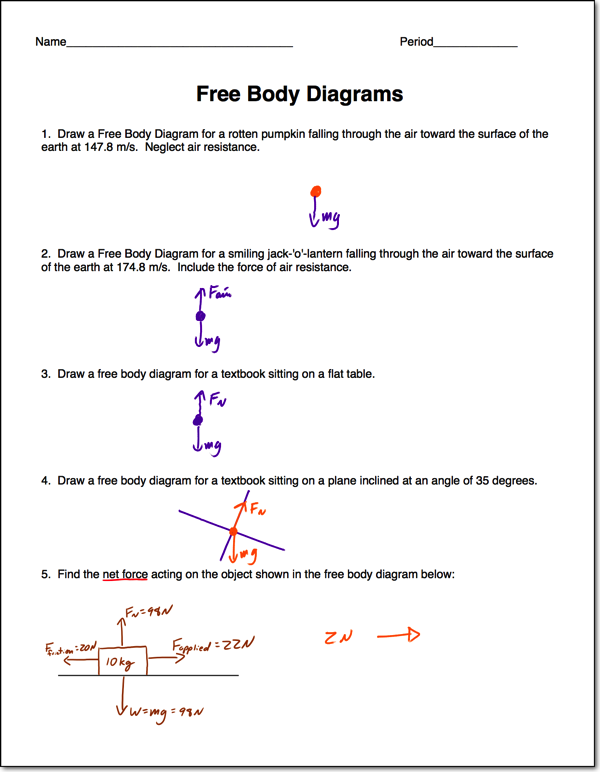

Free Body Diagrams Archives Regents Physics
