39 free body diagram questions

Free Body Diagrams are used to solve problems in Mechanics. The sketch of an object with all the surrounding objects stripped away and all of the forces acting on the body is shown is called a free body diagram. It helps to solve and analyses the questions involving the forces. Recent questions from topic free-body-diagram 0 votes. 1 answer. Calculate the acceleration of the block B of the figure Fig. 5.23, assuming surfaces and pulleys to be smooth. ... free-body-diagram; 0 votes. 1 answer. A particle of mass `1.0g` moving with velocity `v_1=3.0i-2.0j` experiences a perfectly inelastic collision with another particle ...

On Line Quiz # 7: Free Body Diagrams. This activity was created by a Quia Web subscriber.

Free body diagram questions

TIP: Here's some helpful information about drawing forces for your response to free body diagram questions: The forces that you draw on the free body diagram always originate from control point(s) that are pre-defined by your instructor.; Your free body diagram question may have more than one control point that you can draw forces from.; Multiple forces can be drawn from a single control point. Figure 5.32 (a) The free-body diagram for isolated object A. (b) The free-body diagram for isolated object B. Comparing the two drawings, we see that friction acts in the opposite direction in the two figures. Because object A experiences a force that tends to pull it to the right, friction must act to the left. Because object B experiences a component of its weight that pulls it to the left ... FREE-BODY DIAGRAMS (Section 5.2) 2. Show all the external forces and couple moments. These typically include: a) applied loads, b) support reactions, and, c) the weight of the body. Idealized model Free-body diagram (FBD) 1. Draw an outlined shape. Imagine the body to be isolated or cut "free" from its constraints and draw its outlined shape.

Free body diagram questions. Question 2. SURVEY. 30 seconds. Q. Match description with free-body diagram. answer choices. A book is at rest on a tabletop. A gymnast holding onto a bar, is suspended motionless in mid-air. The bar is supported by two ropes that attach to the ceiling. Diagram the forces acting on the combination of gymnast and bar. Forces in free-body diagrams are numerous by design, and this quiz and worksheet combo will help you test your understanding of how to represent these many forces in free-body diagrams. Some of ... Free Body Diagrams. The first step is to draw a Free Body Diagram (also called a Force Diagram) Free Body Diagram: A sketch where a body is cut free from the world except for the forces acting on it. In the bridge example the free body diagram for the top of the tower is: Free Body Diagram. It helps us to think clearly about the forces acting ... SURVEY. 30 seconds. Q. Match description with free-body diagram. answer choices. A book is at rest on a tabletop. A gymnast holding onto a bar, is suspended motionless in mid-air. The bar is supported by two ropes that attach to the ceiling. Diagram the forces acting on the combination of gymnast and bar.

120 seconds. Q. 8 N to the left , and 4 N to the right. Find the net force. Is this balanced. answer choices. 12 N Right No. 4 N Left No. 12 N Right Yes. 4 N Left Yes. Drawing Free-Body Diagrams. Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation. A free-body diagram is a special example of the vector diagrams that were discussed in an earlier unit. These diagrams will be used throughout our study of physics. A free body diagram is a diagrammatic depiction of a single body or a subsystem of bodies that is separated from its surroundings and shows all of the forces operating on it. A free body diagram (force diagram, or FBD) is a graphical representation used in physics and engineering to illustrate the applied forces, moments, and consequent ... Question On Free Body Diagrams. Lesson 8 of 20 • 5 upvotes • 7:38mins. Somesh Mohapatra. This lesson explores the cases of force applications in terms of questions and completes the idea. This lesson will be beneficial for the students preparing for JEE Main, JEE Advanced, AIIMS, AIPMT, COMED, BITS, Engineering & Medical entrance exams ...

17 Questions Show answers. Question 1 . SURVEY . 30 seconds . Q. Name the missing force.... answer choices . weight force. normal force. frictional force ... Which of the following is true about this free-body diagram? answer choices . the forces are are balanced. the object is free-falling. the object is moving upward. the forces are unbalanced. In physics, free-body diagrams help you understand how Newton's laws of motion describe how objects move when forces are applied to them. Here are some practice questions that you can try. Practice questions Use the following force diagram of a mass hanging from a pulley by a massless rope to answer Questions 1 to 3. […] Free Body Diagram Questions and Answers. Get help with your Free body diagram homework. Access the answers to hundreds of Free body diagram questions that are explained in a way that's easy for ... FREE-BODY DIAGRAMS (Section 5.2) 1. Draw an outlined shape. Imagine the body to be isolated or cut "free" from its constraints and draw its outlined shape. 2. Show all the external forces and couple moments. These typically include: a) applied loads, b) the weight of the body, and c) support reactions (can be difficult).

This quiz is incomplete! To play this quiz, please finish editing it. Delete Quiz. This quiz is incomplete! To play this quiz, please finish editing it. ... Which of the following free body diagrams correctly depict the forces acting on an object that is moving at a constant velocity? answer choices . Tags: Report Quiz.

Free Body Diagram Socratic

Test your understanding of Free body diagram concepts with Study.com's quick multiple choice quizzes. Missed a question here and there? All quizzes are paired with a solid lesson that can show you ...

Solved Draw The Free Body Diagrams For The Following Chegg Com

Figure 5.32 (a) The free-body diagram for isolated object A. (b) The free-body diagram for isolated object B. Comparing the two drawings, we see that friction acts in the opposite direction in the two figures. Because object A experiences a force that tends to pull it to the right, friction must act to the left. Because object B experiences a component of its weight that pulls it to the left ...

Free Body Q Extra Practice Bpk 201 Practice Questions Free Body Diagrams Modified From Practice Studocu

Free Body Diagrams The above diagram shows two blocks of respective masses m 1 = 7 kg m_1 = 7 \text{ kg} m 1 = 7 kg and m 2 = 2 kg m_2 = 2 \text{ kg} m 2 = 2 kg which are connected by a massless string and placed on a horizontal frictionless surface.

Tenth Grade Lesson Free Body Diagram Day 1 Betterlesson

Practice Questions: Free-body diagrams for four situations are shown below. For each situation, determine the net force acting upon the object. Free-body diagrams for four situations are shown below. The net force is known for each situation. However, the magnitudes of a few of the individual forces are not known.

Draw Free Body Diagrams And Answer Questions Please Draw The Free Body Diagram For The Bob Homeworklib

GATE Questions & Answers of Free Body Diagrams and Equilibrium. What is the Weightage of Free Body Diagrams and Equilibrium in GATE Exam? Total 14 Questions have been asked from Free Body Diagrams and Equilibrium topic of Engineering Mechanics subject in previous GATE papers. Average marks 1.57.

1 4 Free Body Diagrams Engineering Libretexts

This contains 15 Multiple Choice Questions for Mechanical Engineering Test: Different Free Body Diagrams (mcq) to study with solutions a complete question bank. The solved questions answers in this Test: Different Free Body Diagrams quiz give you a good mix of easy questions and tough questions.

Free Body Diagrams Tutorials With Examples And Explanations

Introduction to forces and free body diagrams review Our mission is to provide a free, world-class education to anyone, anywhere. Khan Academy is a 501(c)(3) nonprofit organization.

Free Body Diagrams Definition Concepts Examples Practice Problems

The free body diagram helps you understand and solve static and dynamic problem involving forces. It is a diagram including all forces acting on a given object without the other object in the system. You need to first understand all the forces acting on the object and then represent these force by arrows in the direction of the force to be drawn.

A free-body diagram is a diagram that is modified as the problem is solved. Normally, a free body diagram consists of the following components: The number of forces acting on a body depends on the specific problem and the assumptions made. Commonly, air resistance and friction are neglected.

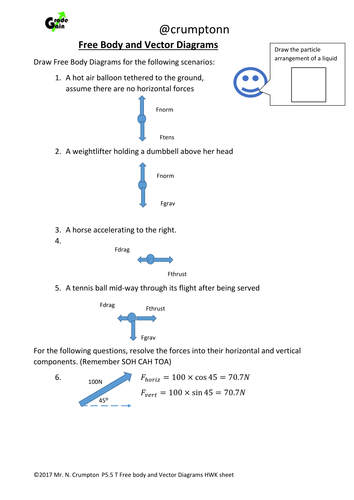

Gcse Physics Free Body Diagrams And Vector Diagrams Worksheet Teaching Resources

250+ TOP MCQs on Different Free Body Diagrams and Answers. Engineering Mechanics Multiple Choice Questions on "Different Free Body Diagrams". 1. Just like the collinear forces for free body diagrams there are collinear couple and the net moment is taken out from it. a) The first part of the statement is false and other part is true.

Solving Force Problems In Physics By Using Free Body Diagrams Dummies

Free Body Diagrams Practice Problems Construct free-body diagrams for the various situations described below. 1. A book is at rest on a table top. Diagram the forces acting on the book. 2. A girl is suspended motionless from a bar which hangs from the ceiling by two ropes. Diagram the forces acting on the girl. 3. An egg is free-falling from a nest in a tree. Neglect air resistance.

Balanced Force Particle Model Practice Test Exam 1 Date Bl Balanced Force Particle Model Practice Test

FBD (2) : Draw the free body diagram of the block shown in figure 1.12. Where R is reaction from the surface (R = Mg) FBD (3) : Draw free body diagrams of both the blocks (figure 1.13 a), Assuming a reaction of magnitude 'R' is present at the interface. Now a question comes Can 'R' have a direction opposite to what is shown here?

Solved Pdf Or Assignment On Free Body Diagrams Ebd 1 Chegg Com

1. An egg is free-falling from a nest in a tree. Neglect air resistance. 2. A flying squirrel is gliding (no wing flaps) from a tree to the ground at constant velocity. Consider air resistance. 3. A rightward force is applied to a book in order to move it across a desk with a rightward acceleration. Consider frictional forces. Neglect air resistance.

Solved To Understand How To Construct A Free Body Diagram For An Object 1 Answer Transtutors

the answers are gravity,electrical,and magnetic. the answers are normal,buoyant,friction,air resistance tension…. what are free body diagrams. the answer is they are simplified diagrams that are used to sh…. what is a free body diagram an example…. the answer is a vector diagram,since each force must have magn…. 15 Terms.

How To Use Free Body Diagrams To Solve Motion Problems Video Lesson Transcript Study Com

FREE-BODY DIAGRAMS (Section 5.2) 2. Show all the external forces and couple moments. These typically include: a) applied loads, b) support reactions, and, c) the weight of the body. Idealized model Free-body diagram (FBD) 1. Draw an outlined shape. Imagine the body to be isolated or cut "free" from its constraints and draw its outlined shape.

Solved In Each Of The Five Following Examples The Body To Chegg Com

Draw A Complete And Correct Free Body Diagram Of Each Of The Bodies Designated In The Statements Study Com

Gcse Physics Free Body Diagrams And Vector Diagrams Worksheet Teaching Resources

Sarah Pushes A Box Free Body Diagram Question Download Scientific Diagram

Free Body Diagram

Free Body Diagrams Definition Concepts Examples Practice Problems

How Should I Break Down A Tension Force For Free Body Diagrams Physics Stack Exchange

Ppt Free Body Diagrams Powerpoint Presentation Free Download Id 5643990

Free Body Diagrams In Physics Problems Dummies

Free Body Diagram Practice Free Body Diagrams 2 Inertia Multiple Choice Questions And True Or False 1 Dimensional Motion Forces Free Body Diagrams Net Force Net Force Flashcards Quizlet

Free Physics Worksheet Force Diagrams Try This Free High School Science Worksheet With Your Physics Studen Physics High School Physics Lessons Body Diagram

Free Body Diagrams

Solved Qno 4 Draw Free Body Diagram For Each Box Below And Answrer Following Four Questions For Each Situation How Many Fcrces Are Acting On The Object Do The Forces Cance Out Js The
